1) STK Objects
• Insert New... > Aircraft > From Standard Object Database.
• Leave Name Field blank.
• Hit the Search button.
• Select CTRL A to Select All.
• Click Insert button.
• Save the scenario.
• To reuse these in another scenario, you can Insert > Aircraft > From File and browse to this scenario folder.
2) As Aircraft Catalog for use directly within Aviator Object Properties
• Download the
Catalog file.• Import the Aircraft Catalog:
• In the STK Menu Toolbar open Utilities > Aviator Catalog Manager…
• Per the
Catalog Data Help Topic...
• Expand Aircraft.
• Right-click on User Aircraft Models.

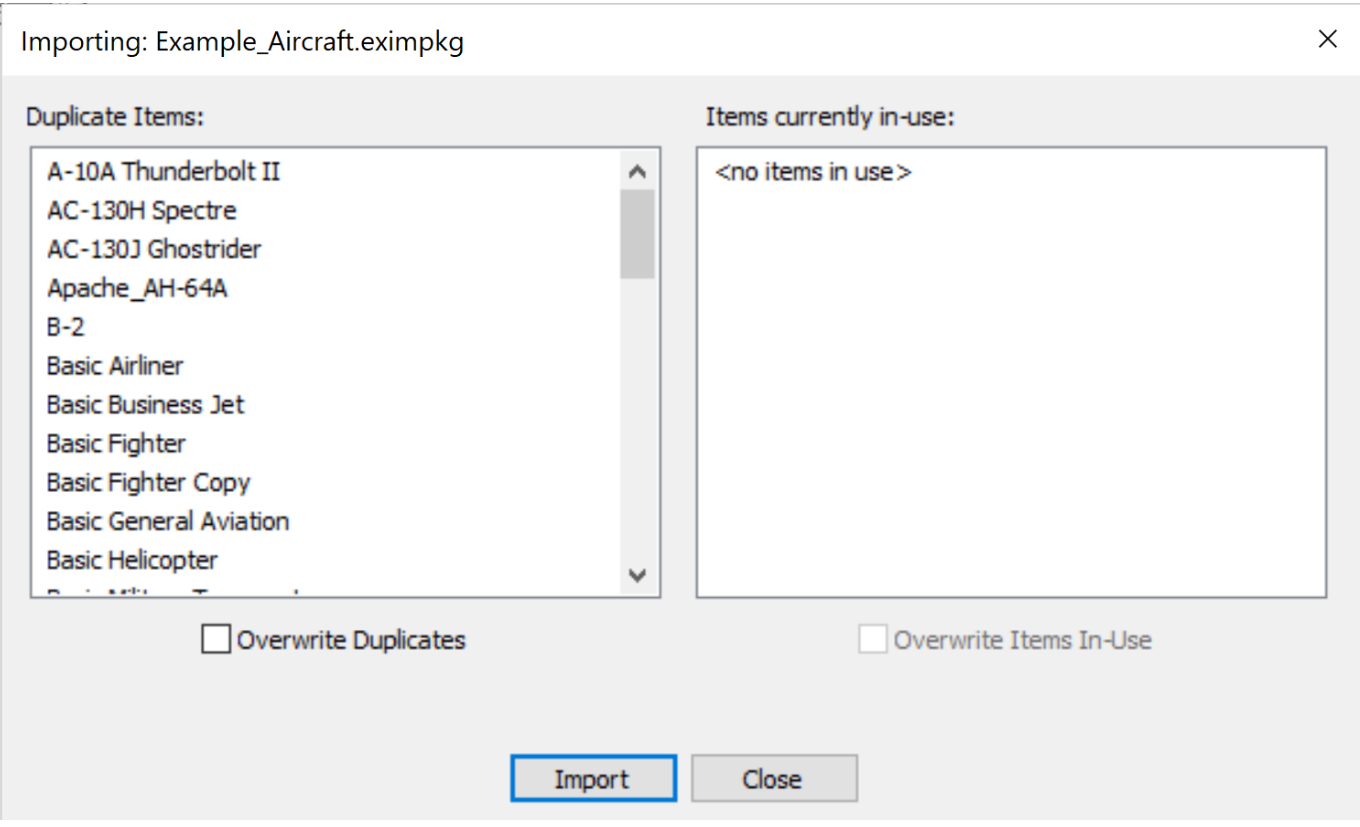

• Select Import.
• Browse to your downloaded .eximpkg file.
• Select Open.
• Click Import.
• NOTE: You can use this same workflow to export your own performance models that you’d like to share with others.
